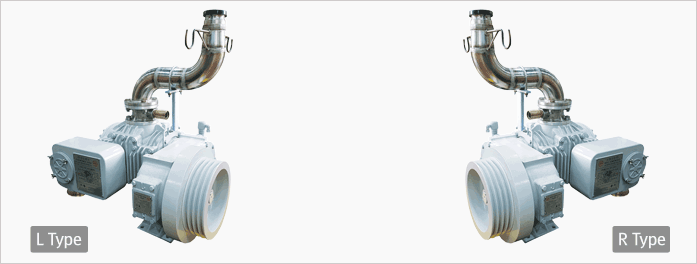

| ¢º Place of use: BCT (26§© ~ 36§©) |
|
- This is the high capacity and high output BCT compressor that it enables the discharge pressure air for up to
13.5 §©/min to have the large capacity of BCT to unload in short period of time (takes 18 minutes)
- The internal compression heat generated from the reduction of external wall thickness and structure improvement of the
thermal pin is smoothly released. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |
| POWER-JIN 14 UR/UL |
Air |
14m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
60Hp/45kw |
265kg |
78db |
V Belt |
|
|
- Operating : 60 minute
- Maximum revolution : 900 rpm |
|
 |
|
|
|
 |
|

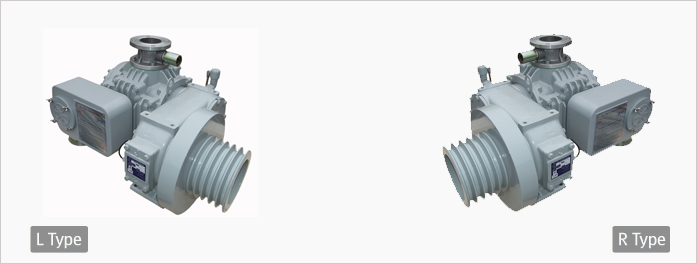

| ¢º Place of use: BCT ( 18§© ~ 22§© ) |
|
- With the expansion of the diameter of the cylinder (¨ª 260) and the reduction of the external wall thickness, the discharge
efficiency is increased and the compressor weight is declined that the unloading efficiency is maximized.
- Absorbing the vibration and noise following the PTO operation of the engine increases the operation efficiency. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |
| POWER-JIN 12 UR/UL |
Air |
12m3/min |
1.9kgf/cm2 |
850~950rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
40Hp/30kw |
242kg |
62db |
V Belt |
|
|
- Operating : 60 minute
- Maximum revolution : 950 rpm |
|
 |
|
|
|
 |
|

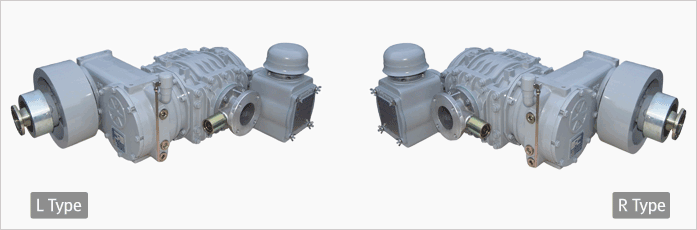

| ¢º Place of use: tank lorry ( 10kl ~ 22kl ) |
|
- The loading is possible to the narrow space of the lower part, as in the tank lorry and the low noise (60db) and discharge efficiency is outstanding.
- With the discharge pipe and discharge cover loaded on the lower part, the efficiency is increased and the pipe joint work is easy when unloading cement. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |
| POWER-JIN 8.5 DR/DL |
Air |
8.5m3/min |
1.9kgf/cm2 |
900~1000rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
30kw |
195kg |
65db |
YCC Coupling |
|
|
- Operating : 60 minute
- Maximum revolution : 1000mm |
|
