| Development history |
|
| High Durability achieved by making a cylinder diameter 200mm can be mounted in a small space |
|
| Major applicable vehicle type |
|
| Low power vehicle cargo or motor, Engine Type Application |
|
 |
|
| Development history |
|
| The diameter of the cylinder is set for 230mm to develop as the durable product that endures the drastic flluctuation of lead as well as the increase of atmospheric pressure. |
|
| Major applicable vehicle type |
|
1) 11~20 tin 2x4 cargo revised TANK ROLLEY.
2) Lower part reduced space-type truck for space utilization of upper loaded side. |
|
 |
|
| Development history |
|
1) Secure cylinder of 260 with high release capability(10~13.5§©/min)
2) For transporting BCT(Bulk Cement Trailer) as well as the plant pipe line of chemical plant
3) Improve the defective lowering of temporary capability lowering at momentary high pressure(4kg/§²) |
|
 |
|
| Development History |
|
| A single product by applying the two cylinders that protects the product from the overhead product development |
|
| Main application |
|
| Apply to products for the motor & engine type |
|
| Major capability improvement |
Capability classification/
MODEL name |
VS 200 Series |
VS 230 Series |
VS 260 Series |
| Discharge volume(§©/min) |
7~12 |
5.5~15 |
11~26 |
| Consecutive operation time |
60 |
60 |
60 |
| Weight(kg) |
170~370 |
165~450 |
235~720 |
|
|
 |
|
 |
|

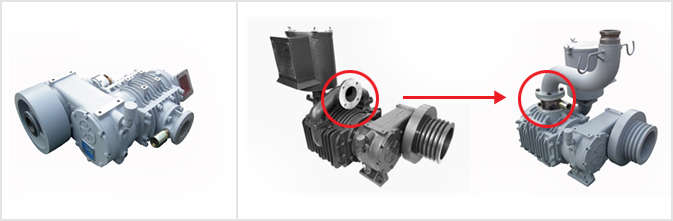

| Into the exhaust pipe to the cylinder itself from the existing exhaust pipe products using innovative product development => South Korea China design registration |
|
 |
|
 |
|

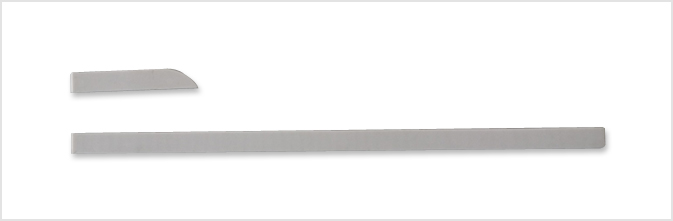

| Applied to developing products for the blade PP form of Teflon that can replace the existing carbon graphite => complete Korea Patent |
|
| Apply recommended |
|
| A circulating system (nitrogen), PVC, flour |
|
 |
|
 |
|

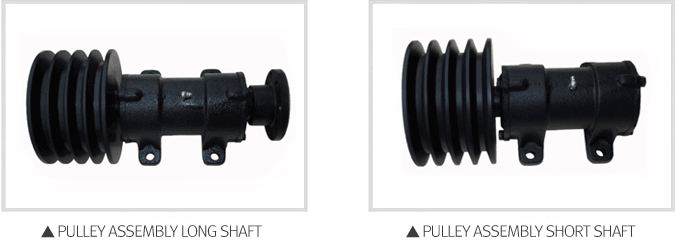

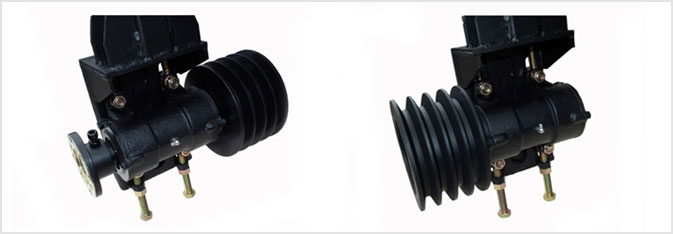

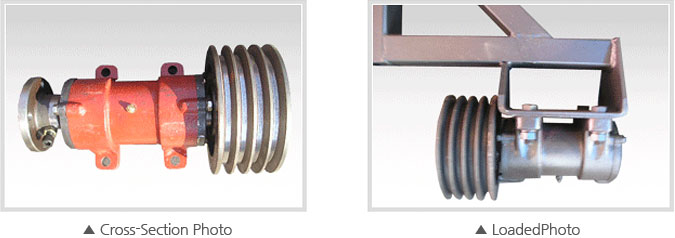

| Apply to all products for the under compressor conector development, in its own technology companies to facilitate the transfer of power to the product for the under compresso belt drive is not |
|
 |
|
 |
|
- Two way power delivery type
- Durability improvemnt |
|
 |
|
 |
|
 |
|
- The belt tension control & exchange to facilitate (2014 09)
- At the fitting time saving |
|
 |
|
| Machine Processing |
BCT COMPRESSOR |
Part Processing |
· Precision processing through machining center
(3axis & 2shuttle table type)and automatic jib setting
· CAM/CAD reflection of design change for capacity |
| Assembly |
Gear Pump/
Vacuum Pump |
Part Processing |
· When processing is modified, it is free of the processing loaded
jib improvement of quality level by applying adaptable type that
is independently developed |
| Assembly |
| Loaded Part |
PTO |

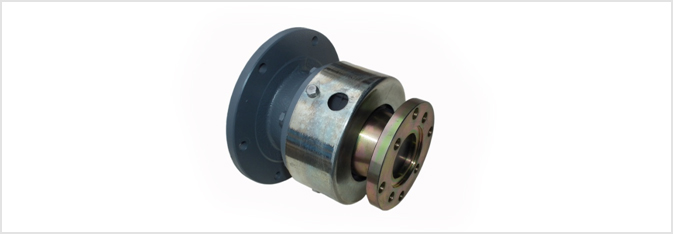

· DOUBLE AXIS TYPE PTO Design development and production
· Part processing for loading: FLANGE, COUPLING, JOINT BRKT |
| JOINT |
| Polycase A |
|
|
Casting
Processing |
DUCTILE Material |
· High capability alactric furnace(process capability: 20TON/day)
· Casting processsing: tumbler & cracker |
| FC Material |
|
|
Operation
& A/S |
Agency operation |
· 9 dealers in korea, 30 dealers in China, 2 dealers in indonesia, 1 dealers in Malaysia
· Around 15 countries, and annual sales for 6500 production facility expansion
(Canada,
Greece, Brazil, India, Turkey, Sri Lanka, Malaysia, Indonesia, Thailand,
Vietnam,
Taiwan, Singapore)
· Qingdao, China Factory |
Overseas Sales
Network |
| Local plant |
|
|
 |
|
 |
|
