| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

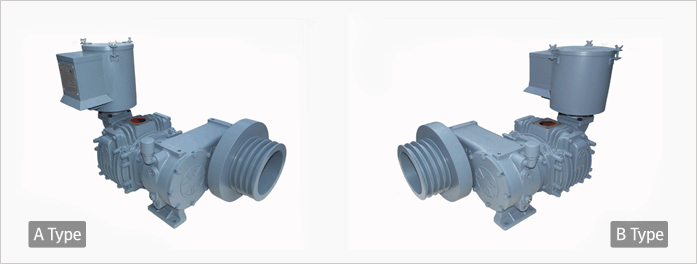

| VS 230 5.5 SA/SB |
Air |
5.5m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
30Hp/22.5kw |
165kg |
60db |
V Belt |
|
|
- Operating : 60 minute
- Maximum revolution : 900rpm |
|
 |
|
|
|
 |
|
| ¢º Place of use: BCT (16§©~22§©) |
|
- Minimization of external dimension and lightweight, it is easy to load on the narrow upper space - of thevehicle.
- The air absorption capability is maximized and the life of the air filter is extended following the upward arrangement of the absorption air cleaner. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

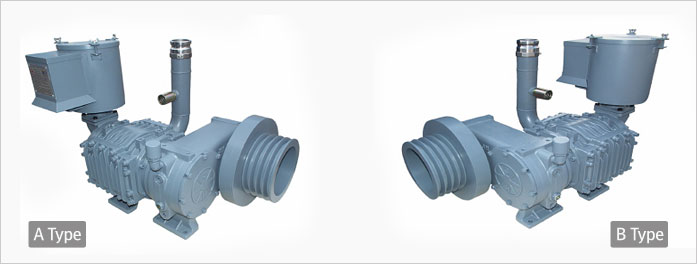

| VS 230 8.5 SA/SB |
Air |
8.5m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
30kw |
222kg |
65db |
V Belt(C5P) |
|
|
- Operating : 60 minute
- Maximum revolution : 900rpm |
|
 |
|
|
|
 |
|
| ¢º Place of use: tank lorry ( 10kl ~ 22kl ) |
|
- The loading is possible to the narrow space of the lower part, as in the tank lorry and the low noise (60db) and discharge efficiency is outstanding.
- With the discharge pipe and discharge cover loaded on the lower part, the efficiency is increased and the pipe joint work is easy when unloading cement. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

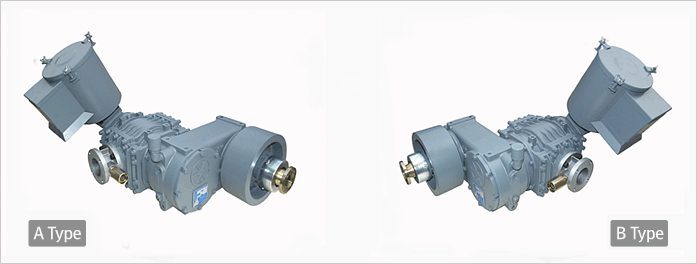

| VS 230 8.5 XA/XB |
Air |
8.5m3/min |
1.9kgf/cm2 |
900~1000rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
30kw |
195kg |
65db |
YCC Coupling |
|
|
- Operating : 60 minute
- Maximum revolution : 1000mm |
|
 |
|
|
|
 |
|
| ¢º Place of use: tank lorry ( 10kl ~ 22kl ) |
|
- The loading is possible to the narrow space of the lower part, as in the tank lorry and the low noise (65db) and discharge efficiency is outstanding.
- With the discharge pipe and discharge cover loaded on the lower part, the efficiency is increased and the pipe joint work is easy when unloading cement. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

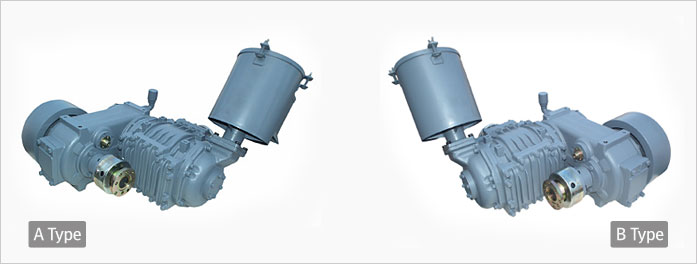

| VS 230 8.5 XXA/XXB |
Air |
8.5m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
30kw |
201kg |
65db |
YCC Coupling |
|
|
- Operating : 60 minute
- Maximum revolution : 900rpm |
|
 |
|
|
|
 |
|
- Minimization of external dimension and lightweight, it is easy to load on the narrow upper space of thevehicle.
- The air absorption capability is maximized and the life of the air filter is extended following the upward arrangement of the absorption air cleaner. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

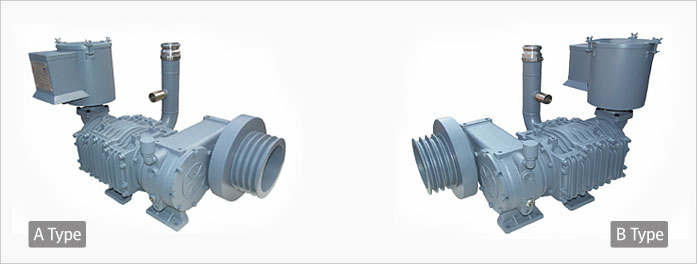

| VS 230 10 SA/SB |
Air |
10m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
35kw |
231kg |
70db |
V Belt |
|
|
- Operating : 60 minute
- Maximum revolution : 900rpm |
|
 |
|
|
|
 |
|
- The loading is possible to the narrow space of the lower part, as in the tank lorry and the low noise (60db) and ??discharge efficiency is outstanding.
- With the discharge pipe and discharge cover loaded on the lower part, the efficiency is increased and the pipe joint?work is easy when unloading cement. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

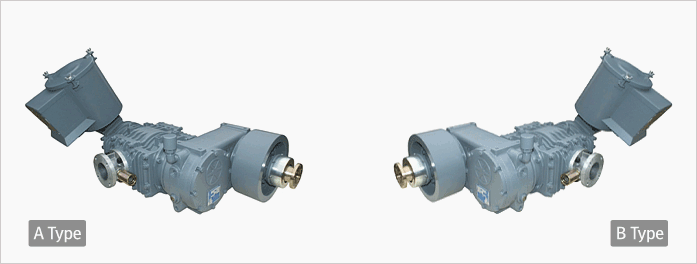

| VS 230 10 XA/XB |
Air |
10m3/min |
1.9kgf/cm2 |
900~1000rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
35kw |
204kg |
70db |
YCC Coupling |
|
|
- Operating : 60 minute
- Maximum revolution : 1000mm |
|
 |
|
|
|
 |
|
- The loading is possible to the narrow space of the lower part, as in the tank lorry and the low noise (70db) and ??discharge efficiency is outstanding.
- With the discharge pipe and discharge cover loaded on the lower part, the efficiency is increased and the pipe joint?work is easy when unloading cement. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

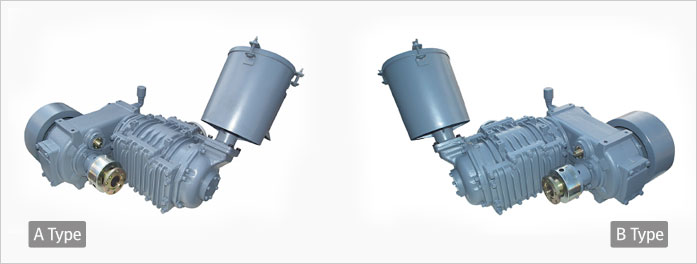

| VS 230 10 XXA/XXB |
Air |
10m3/min |
1.9kgf/cm2 |
900~1000rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
35kw |
209kg |
70db |
YCC Coupling |
|
|
- Operating : 60 minute
- Maximum revolution : 1000mm |
|
 |
|
|
|
 |
|
- The loading is possible to the narrow space of the lower part, as in the tank lorry and the low noise (82db) and ??discharge efficiency is outstanding.
- With the discharge pipe and discharge cover loaded on the lower part, the efficiency is increased and the pipe joint?work is easy when unloading cement. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

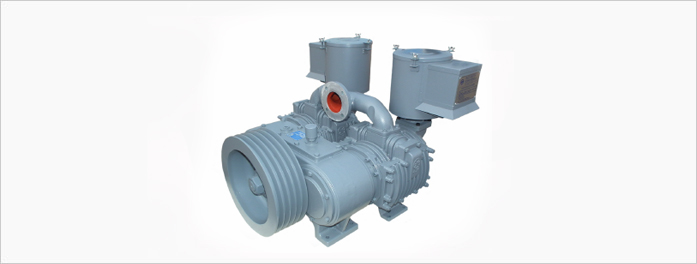

| VS 230 15 SS |
Air |
15m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 8L |
45kw |
379kg |
82db |
V Belt |
|
|
- Operating : 60 minute
- Maximum revolution : 900rpm |
|
