| ¢º Place of use: BCT ( 18§© ~ 22§© ) |
|
- With the expansion of the diameter of the cylinder (¨ª 260) and the reduction of the external wall thickness, the discharge
efficiency is increased and the compressor weight is declined that the unloading efficiency is maximized.
- Absorbing the vibration and noise following the PTO operation of the engine increases the operation efficiency. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

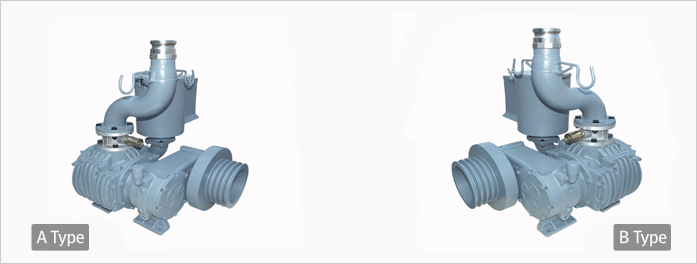

| VS 260 11 SA/SB |
Air |
11m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
40Hp/30kw |
235kg |
75db |
V Belt |
|
|
- Operating : 60 minute
- Maximum revolution : 900 rpm |
|
 |
|
|
|
 |
|
| ¢º Place of use: BCT (26§© ~ 36§©) |
|
- This is the high capacity and high output BCT compressor that it enables the discharge pressure air for up to
13.5 §©/min to have the large capacity of BCT to unload in short period of time (takes 18 minutes)
- The internal compression heat generated from the reduction of external wall thickness and structure improvement of the
thermal pin is smoothly released. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

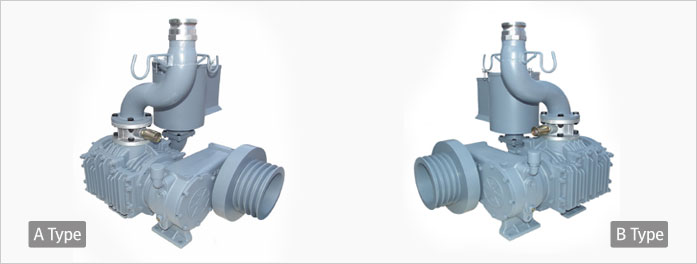

| VS 260 14 SA/SB |
Air |
14m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
60Hp/45kw |
265kg |
78db |
V Belt |
|
|
- Operating : 60 minute
- Maximum revolution : 900 rpm |
|
 |
|
|
|
 |
|
| ¢º Place of use: BCT (26§© ~ 36§©) |
|
- This is the high capacity and high output BCT compressor that it enables the discharge pressure air for up to
13.5 §©/min to have the large capacity of BCT to unload in short period of time (takes 18 minutes)
- The internal compression heat generated from the reduction of external wall thickness and structure improvement of the
thermal pin is smoothly released. |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

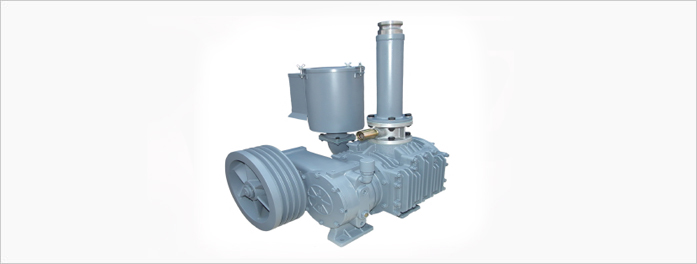

| VS 260 14 SAMO/SBMO |
Air |
14m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 3.5L |
45kw |
282kg |
78db |
V Belt |
|
|
- Operating : 60 minute
- Maximum revolution : 900 rpm |
|
 |
|
|
|
 |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

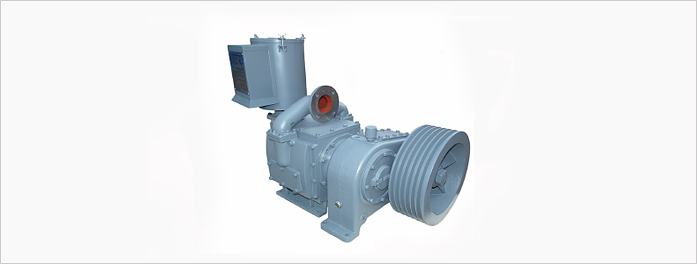

| VS 260 13.5 SU |
Air/Water |
13.5m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 5.0L |
55kw |
413kg |
78db |
V Belt |
|
|
- Operating : 0 min
- Maximum revolution : 900 rpm |
|
 |
|
|
|
 |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |

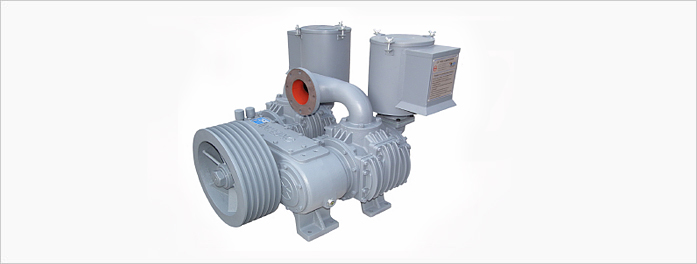

| VS 260 20 SS |
Air |
20m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 8.0L |
75Hp/65kw |
490kg |
82db |
V Belt |
|
|
- Operating : 60 minute
- Maximum revolution : 900 rpm | |
|
 |
|
|
|
 |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |
| VS 260 26 SS |
Air |
26m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 12.0L |
100Hp/75kw |
610kg |
82db |
V Belt |
|
|
- Operating : 60 minute
- Maximum revolution : 900 rpm |
|
 |
|
|
|
 |
|
| ¢º SPECIFICATION of BULK COMPRESSOR |
|
| Model |
Cooling Type |
Exhaust Volume |
Operating Pressure |
Revolution |
| VS 260 26 SSSU |
Air/Water |
26m3/min |
1.9kgf/cm2 |
800~850rpm |
| Lubricant
Oil |
Power |
Weight |
Noise |
Driving
Type |
| 12.0L |
100Hp/75kw |
720kg |
88db |
V Belt |
|
|
- Operating : 24 Hour
- Maximum revolution : 900 rpm |
|
