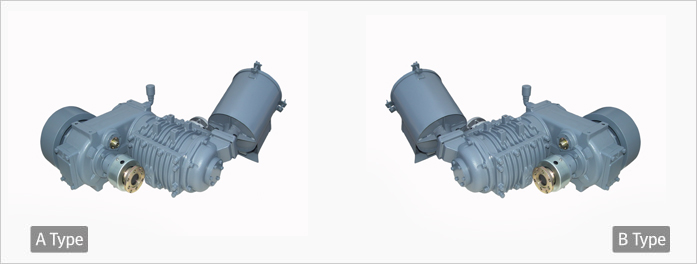

¢º SPECIFICATION of BULK COMPRESSOR
Model Cooling Type Volume rate or flow Operating Pressure Revolution
VS 200 7XX Air 7m3/min 1.9kgf/cm2 900~1000rpm
Lubricant Oil Power Weight Noise Driving Type
3.5L 30Hp/22kw 170kg 65db V Belt
- Operating : 60 minute
- Maximum revolution : 1100mm

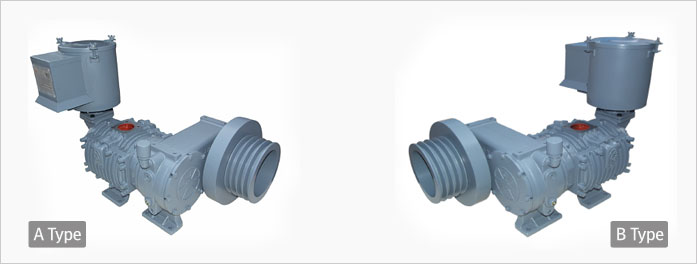

¢º SPECIFICATION of BULK COMPRESSOR
Model Cooling Type Volume rate or flow Operating Pressure Revolution
VS 200 7 SA/SB Air 7m3/min 1.9kgf/cm2 850~900rpm
Lubricant Oil Power Weight Noise Driving Type
3.5L 30Hp/22kw 170kg 65db V Belt
- Operating : 60 minute
- Maximum revolution : 950mm

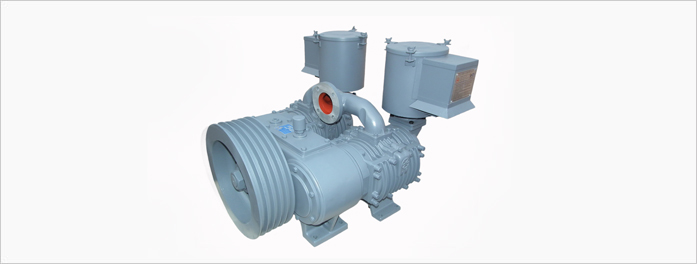

¢º SPECIFICATION of BULK COMPRESSOR
Model Cooling Type Volume rate or flow Operating Pressure Revolution
VS 200 12 SS Air 12m3/min 1.9kgf/cm2 800~850rpm
Lubricant Oil Power Weight Noise Driving Type
8.0L 55Hp/41.3kw 370kg 82db V Belt
- Operating : 60 minute
- Maximum revolution : 900rpm
